ALL-ROUND SOLUTION FOR LARGE AMOUNTS OF WASTE
H&G screw compactors are shredding waste compactors designed to efficiently reduce the waste volume before it is compacted into a container. Their extremely high degree of compaction results in very high payloads for various materials. The robust compactors can be continuously loaded and support 24/7 heavy-duty usage.
The strong build quality of the screw compactors contributes to extended service life. Instead of vulnerable chain-drive system traditionally used on screw compactors, they feature extremely durable electromechanical direct drive with automatic lubrication system.
With their comprehensive selection of separately driven feeding devices, the screw compactors are an all-round solution for various refuse materials. The compactors are available in both stationary and mobile variants. They can be supplied with a range of accessories e.g. bin lifts. Several standard container capacities ranging up to 35 m³ are available.
Highlights
Additional Information
Technical Specifications
400 V, 50 Hz, 3×C63 A*
Standard accessories
- Blue color RAL 5017
- Standard filling hopper
- Control panel
- Safety control panel
- Fill level surveillance (pressure sensor)
- Lift hook rear (container)(Stationary compactor)
- Lift hook front / rear (Mobile compactor)
- Front rollers on container (roll-off)(Stationary compactor)
- Rear rollers on container (roll-off)
- Container not present switch (safety limit)

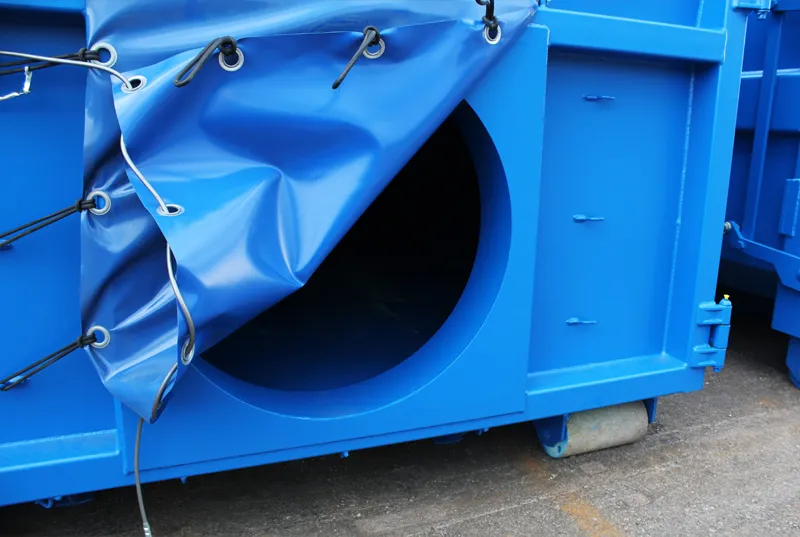

- Closing trap of the container (tarpaulin)(Stationary compactor)
- Automatic central lubrication unit

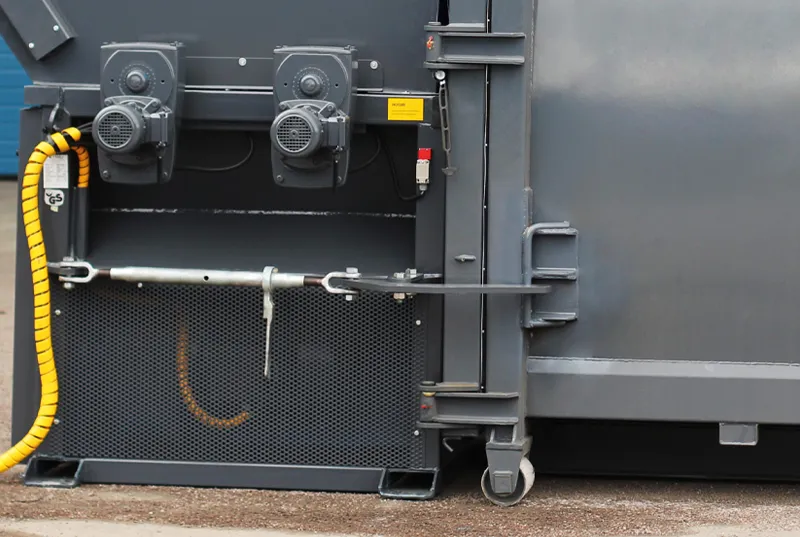

- Direct drive system
Optional accessories
- Custom RAL color
- Guide rails
- Additional controls e.g. emergency stops
- Automatic emptying call function
- Remote monitoring system
- Custom filling hopper
- 2-phase discharge door opening mechanism
- Long handle discharge door opening mechanism
- Bin lift (integrated / stationary)
- Lid opening system (hydraulic / electronic)

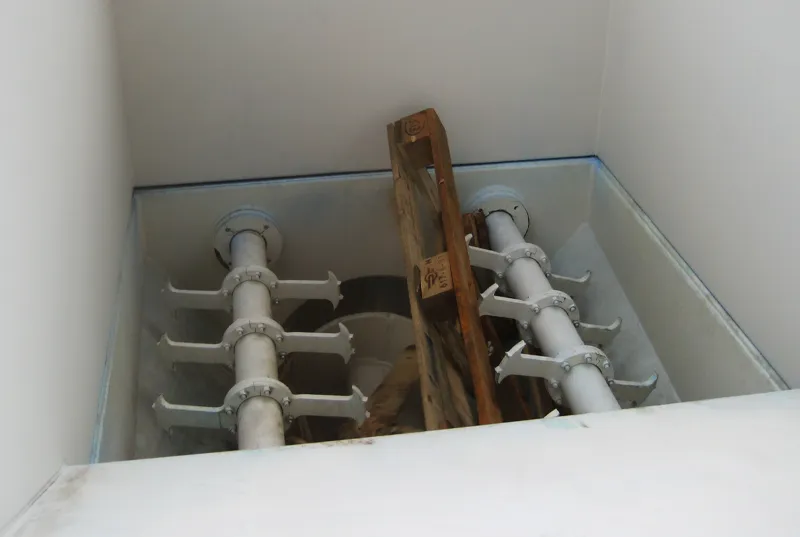

- Feeding devices
- Heavy duty variant
- Double screw variant
- Auto start system
- 15 kW power unit
- Floating roof container 20-36 m²
- Reserve container
Measurements
Width 1,310 mm
Height 1,740 mm
Weight 2,800 – 3,200 kg
Width 2,500 mm
Height 2,560 mm
Weight 2,300 kg
Width 2,500 mm
Height 2,560 mm
Weight 2,430 kg
Width 2,500 mm
Height 2,560 mm
Weight 2,680 kg
Width 2,500 mm
Height 2,560 mm
Weight 2,900 kg
Width 2,500 mm
Height 2,560 mm
Weight 3,000 kg
Width 2,500 mm
Height 3,070 mm
Weight 3,230 kg
